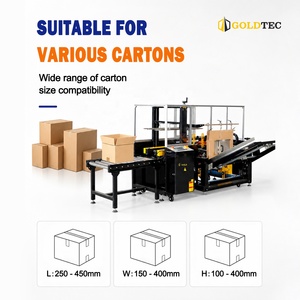

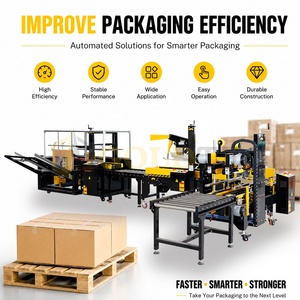

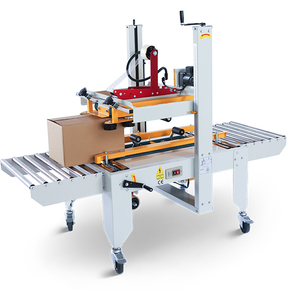

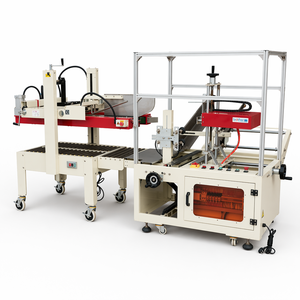

Featured Automatic Case Erectors & Carton Makers
Explore our flagship series of high-speed vertical and horizontal case erectors. Certified with CE and ISO standards, designed for seamless integration into enterprise packaging lines.
Industrial Whitepaper: Next-Generation Case Erecting Technology
In modern secondary packaging infrastructure, the case erector (also known as a carton erector, box former, or cardboard erecting machine) stands as the critical gatekeeper of line efficiency. Operating at the intersection of material handling and structural mechanics, an automated case erector transforms flat, knocked-down (RSC/HSC) corrugated blanks into perfectly squared, bottom-sealed shipping containers ready for pick-and-place, robotic loading, or inline filling systems.
Modern production facilities across food and beverage, pharmaceuticals, logistics, and fast-moving consumer goods (FMCG) face mounting pressures to optimize Overall Equipment Effectiveness (OEE) while minimizing labor overhead and material waste. Traditional manual or semi-automatic box forming methods present severe bottlenecks, characterized by inconsistent squareness, improper flap folding, and tape misalignment that lead to downstream jams in automated casing, palletizing, and stretch-wrapping machinery.
Key Engineering Insight: Case squareness tolerance directly impacts downstream stacking strength. A case out of square by as little as 3 millimeters can suffer up to a 30% reduction in compressive stacking capability, dramatically increasing the risk of transit damage.

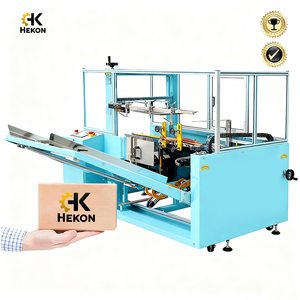

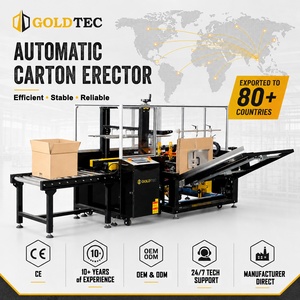

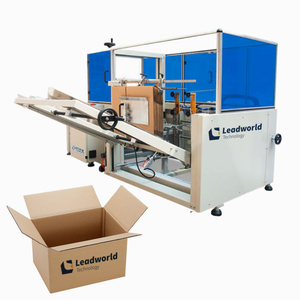

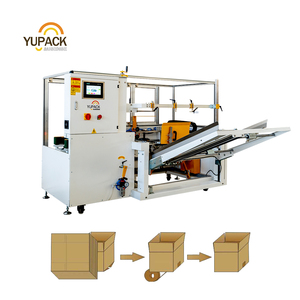

China's packaging machinery manufacturing sector—represented by leading facilities such as YUPACK, Goldtec, LWT, and HEKON—has undergone a massive technological shift. Moving beyond basic pneumatic actuation, top-tier Chinese suppliers now engineer advanced servo-driven case erectors incorporating PLC architectures, dual-vacuum cup extraction mechanisms, dynamic mechanical arm folding, and high-precision bottom sealing (via pressure-sensitive tape or hot-melt adhesive applicator systems).
Technical Comparison: Case Erector Sealing Architecture & Operational Efficiency
Understanding the trade-offs between Adhesive (Hot-Melt Glue) and Pressure-Sensitive Tape (BOPP) bottom sealing systems.
| Evaluation Parameter | Pressure-Sensitive Tape (BOPP) Erectors | Hot-Melt Glue (Adhesive) Erectors | Hybrid / Interchangeable Systems |
|---|---|---|---|
| Line Speed Capacity | 10 – 25 Cases / Minute | 25 – 60+ Cases / Minute | 12 – 30 Cases / Minute |
| Initial Capital Expenditure (CapEx) | Moderate to Low | Higher (Includes Glue Applicator Unit) | Moderate-High |
| Consumable Running Cost (OpEx) | Higher per case (Tape rolls) | Significantly lower per case (Bulk granules) | Variable depending on mode |
| Structural Integrity & Rigidity | Standard shipping protection | Maximum structural rigid box joint | Customizable per batch |
| Cold Storage / Humidity Resistance | Requires specialized acrylic/rubber tape | Superior moisture & low-temp resistance | High adaptability |
| Maintenance & Cleaning Overhead | Low (Blade replacement & roller care) | Medium (Nozzle purging & tank cleanup) | Medium |
Future Procurement Trends in Automated Box Erecting (2025–2030)
As industry standards shift toward lean manufacturing and zero-waste operations, strategic procurement teams must align equipment selection with global technological trajectories.
1. Multi-Format Auto-Adjustable Tooling
High-mix, low-volume manufacturing requires instant case-size changeovers. Next-gen erectors utilize motorized servo spindles governed by stored PLC recipes, reducing format changeover time from 20 minutes down to under 60 seconds without manual hand-crank adjustments.
2. Predictive IoT Diagnostics & Industry 4.0
Integration of IO-Link smart sensors, vacuum pressure transducers, and vibration monitors enables real-time tracking of suction performance, tape depletion pre-warnings, and mechanical wear detection to eliminate unscheduled downtime.
3. Handling Recycled & Lightweight Flutes
With sustainable packaging mandates, corrugated board GSM is decreasing while recycled content increases. Modern erectors employ dual-arm positive opening mechanisms to smoothly square up thin, warped, or stiff recycled cardboard blanks without tearing.
Engineering Blueprint: Anatomy of an Industrial Case Erector
To evaluate a prospective supplier's machine build quality, buyers must scrutinize six fundamental mechanical and electrical subsystems:
A. High-Capacity Blank Storage Magazine
In-feed hoppers (available in horizontal roller-bed or vertical gravity feeder designs) allow continuous loading of up to 100-200 flat cardboard blanks. Ergonomic low-level loading reduces operator strain and enables continuous non-stop operation.
B. Vacuum Cup Extraction System
Multi-point vacuum suction cups powered by Venturi ejectors or high-flow vacuum pumps securely grip the blank. Positive mechanical pin breakers ensure single-sheet separation, preventing dual-blank pulling issues.
C. Dual-Arm Mechanical Squaring Drive
Opposing mechanical arms grip both adjacent panels simultaneously to force the box open to a precise 90-degree angle. This eliminates parallax skewing common in single-arm pull systems.
D. Pneumatic Flap Folding Mechanism
Synchronized pneumatic pushers fold the minor end flaps first, followed by continuous guide plates folding the major side flaps. High-precision proximity switches verify flap positioning before sealing tape or glue application.
Purchasing & Technical FAQ (Procurement Insights)
Addressing critical operational, maintenance, and technical questions asked by plant managers and procurement officers.
Enterprise Manufacturing Advantages & OEM Services
Why leading Fortune 500 logistics brands and multinational manufacturers partner with China's premier packaging machinery factories.
Advanced CNC Fabrication Facilities
State-of-the-art 20,000+ m² production workshops equipped with laser cutters, high-precision CNC machining centers, and automated assembly bays ensuring component interchangeability and rigid structural frames.
Strict Quality Management (ISO 9001:2015 & CE)
Every case erector undergoes a rigorous 72-hour continuous trial run under load before dispatch, testing structural squaring, pneumatics, and sensor responses across multiple carton grades.
Global Engineering Support & Spare Parts
Dedicated international service hubs providing remote PLC diagnostics, on-site commissioning, operator training, and rapid dispatch of standardized spare parts (Schneider Electrics, Siemens PLC, Airtac Pneumatics).
Turnkey Line Integration & Customization
Engineering customized in-feed conveyors, integrated weight-checking modules, top-and-bottom sealing lines, and robotic palletizing cells tailored to unique factory floor layouts.
