Featured Carton Sealing & End-of-Line Packaging Equipment
Discover our comprehensive range of high-performance semi-automatic and fully automatic case sealers, craft paper taping machines, and custom OEM/ODM packaging machinery built for demanding 24/7 continuous operations.

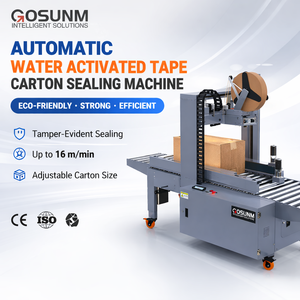

Electric Wet Water Kraft Paper Tape Carton Sealing Machine for Case Packaging
Eco-friendly gummed paper tape sealing system featuring automatic water wetting, precise tape length measurement, and tamper-evident closure for high-security transit.

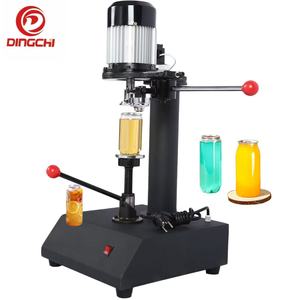

Dingchi Semi-Automatic Electric Can Seamer & Paper Cartons Sealing Machine
Versatile dual-application benchtop sealer tailored for food, beverage cans, and paper cartons. Features easy manual feeds, high-speed motorized sealing rollers, and compact footprint.

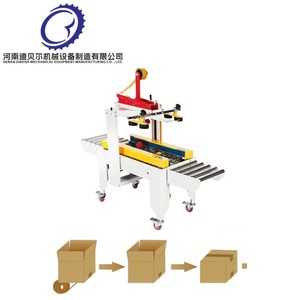

Electric Automatic Side Adhesive Carton Sealing Machine for Food Packing
High-speed side belt drive sealing mechanism specifically designed for side-opening cartons, low-profile boxes, and delicate food packaging applications with zero deformation risk.

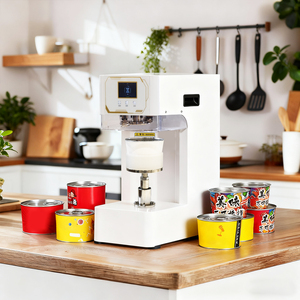

Automatic Paper Carton Sealing Machine Electric Desktop Induction Sealing Equipment
Microprocessor-controlled desktop induction sealer for paper cartons and containers. Guarantees airtight hermetic sealing, thermal consistency, and intuitive user operation.

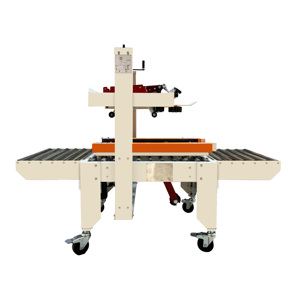

Automatic Box Sealing Machine Speed Adjustable Express Box Tape Sealer
Engineered for e-commerce fulfillment and express logistics. Equipped with variable speed conveyor controls, pneumatic top-flap folding, and continuous heavy-duty tape dispensers.

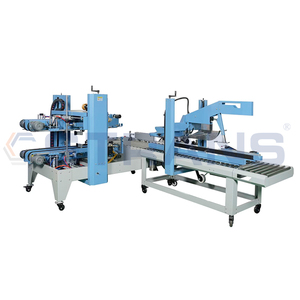

Auto Side Adhesive Cartoon Sealer for Industrial Machinery End of Line
Heavy-duty industrial end-of-line side belt drive sealer built for heavy corrugated cases, industrial machinery components, and multi-shift factory automation integration.

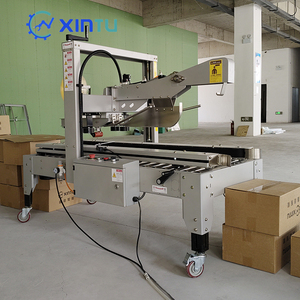

Electric Engine Automatic Carton Sealing Machine for Industry Machinery
Dual-motor powered automatic top-and-bottom tape sealer. Features rigid frame construction, smooth carton transfer, and tool-free quick adjustment for random box sizes.

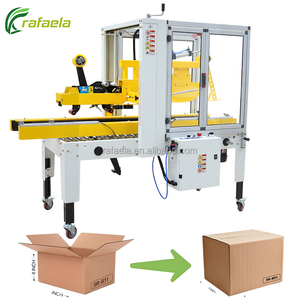

Hot Sell High-Speed Automatic Box Sealer Machine for Standard Corrugated Cartons
Industry-standard top & bottom belt drive sealer delivering reliable, wrinkle-free tape application up to 30 cartons per minute. Ideal for general industrial packaging.
The Next-Generation Architecture of Industrial Carton Sealing Technology: An Enterprise Procurement & Engineering Guide
In modern supply chain management and automated fulfillment facilities, End-of-Line (EOL) packaging efficiency dictates overall operational throughput. Carton sealing machines—ranging from uniform semi-automatic case sealers to fully automated random side-drive taping systems—serve as the critical bridge between primary production and global logistics distribution. As e-commerce order volumes surge and manufacturing paradigms shift toward Industry 4.0 smart factory integration, B2B procurement decision-makers must evaluate case sealing equipment through a multi-dimensional lens: Total Cost of Ownership (TCO), mechanical reliability, energy efficiency, and adhesive compatibility.
1. Kinematic Mechanics & Drive Mechanisms in Case Sealing
The structural stability and taping precision of a carton sealing machine depend primarily on its drive belt positioning and conveyor kinematics. Understanding these mechanical archetypes is essential for specifying the correct OEM configuration for your facility's product dimensions and carton weights:
- Top and Bottom Belt Drives: Engineered specifically for tall, narrow cartons or heavy corrugated boxes. Dual synchronized drive belts apply positive traction to both the top and bottom faces, preventing carton tipping and ensuring square tape application across the seam.
- Side Belt Drives: Optimized for short, wide, or lightweight cartons. By clamping the vertical side walls of the box, side-drive systems eliminate top-flap buckling and handle unstable or lightweight products without crushing delicate contents.
- Side-Adhesive Taping Systems: Specialized machinery designed for side-opening boxes, common in beverage, canned goods, and pharmaceutical tray packaging. These systems apply pressure-sensitive or kraft paper tape to side flaps while maintaining structural alignment.
| Drive System Category | Carton Geometry Compatibility | Max Speed (Cartons/Min) | Primary Industry Applications | Key Engineering Advantage |
|---|---|---|---|---|
| Top & Bottom Drive | Tall, narrow, or heavy boxes (up to 40kg) | 25 - 35 CPM | Manufacturing, FMCG, Electronics | Prevents tipping; high traction on heavy loads |
| Side Belt Drive | Short, wide, flat, or light boxes | 30 - 45 CPM | E-Commerce fulfillment, Apparel, Food | No top compression; handles wide aspect ratios |
| Side Adhesive Sealer | Side-opening cartons & shallow trays | 20 - 30 CPM | Beverage cans, Bakery, Dairy trays | Precise side flap closure without distortion |
| Water-Activated Kraft Sealer | Standard to heavy-duty RSC boxes | 15 - 25 CPM | High-security logistics, Eco-packaging | Tamper-evident fiber-bond; 100% recyclable |
Future Procurement Trends in Industrial Packaging (2025–2030)
Global enterprise packaging operations are undergoing a rapid transformation driven by sustainability mandates, labor shortages, and real-time operational telemetry requirements. When procuring OEM/ODM carton sealing machinery, procurement officers and plant managers should align their technical specifications with four dominant industry megatrends:
1. Transition to Eco-Friendly Kraft Taping
Regulatory pressure regarding single-use plastics is driving a shift from BOPP/Acrylic tapes to Water-Activated Kraft Paper Tape (WAT). WAT forms an irreversible starch-based bond with corrugated fibers, creating a 100% recyclable, tamper-evident seal that withstands extreme hot and cold storage environments.
2. Smart IoT Telemetry & Predictive Maintenance
Modern enterprise case sealers feature IO-Link sensors, PLC touchscreens, and cloud telematics. Real-time tracking of tape consumption, motor thermal profiles, blade sharpness metrics, and cycle counts enables predictive maintenance schedules, eliminating unscheduled line stoppages.
3. Random Dimension Sensing & Modular Automation
E-commerce fulfillment centers require real-time adaptation. Advanced random case sealers automatically detect inbound box height and width using photoelectric sensors or 3D vision systems, adjusting pneumatic sealing heads dynamically without operator intervention.
Technological Innovations in OEM/ODM Case Sealing Machinery
SIA Concordia / OEM Custom Manufacturing engineering integrates several patented mechanical and electrical innovations that set our sealing systems apart from standard market offerings:
- Precision Tape Heads with Adjustable Tensioners: Dual-spring tape application heads accommodate varying tape thicknesses (from 40 to 90 microns) without stretching or snapping film. The integrated wipe-down rollers ensure bubble-free adhesion across top and bottom seams.
- Pneumatic Automatic Flap-Folding Mechanisms: High-speed mechanical side arms automatically fold the front, rear, and side flaps of incoming Regular Slotted Containers (RSC), eliminating the need for manual flap intervention prior to taping.
- Safety Knife Shield Guards: Emergency spring-loaded safety guards enclose the tape cutting blade, preventing operator injury during routine roll changeovers or manual adjustments.
- Energy-Efficient Servo-Driven Motors: High-torque brushless servo drives consume up to 35% less power compared to legacy AC induction motors while offering precise speed synchronization with upstream case erectors and downstream palletizers.
Why Partner With Us for OEM & ODM Packaging Solutions?
With over two decades of specialized industrial machinery design and a state-of-the-art 20,000 m² manufacturing facility, we empower global brand owners, system integrators, and packaging distributors with customized end-of-line packaging automation.
-
✓Full OEM/ODM Customization: Tailored chassis dimensions, custom belt speeds, voltage adaptations (110V-480V), and specialized stainless-steel (SUS304/316) builds for washdown food/pharma environments.
-
✓Rigorous Quality Control & Standards: ISO 9001:2015 certified production processes, CE compliance, and mandatory 72-hour continuous burn-in testing prior to global dispatch.
-
✓Global Engineering Support: Turnkey installation services, local agent training programs, spare parts availability guaranteed for 10+ years, and 24/7 remote technical assistance.
-
✓High Cost-Performance & Fast Lead Times: Scalable modular manufacturing allows standardized machine delivery in as few as 7–14 business days, with custom OEM lines delivered within 30 days.
Frequently Asked Procurement & Technical Questions (FAQ)
Find expert answers to common queries regarding carton sealer selection, tape compatibility, OEM engineering options, maintenance requirements, and global logistics support.
Q1 What is the difference between Uniform and Random Carton Sealing Machines?
Uniform Case Sealers are manually pre-adjusted to a specific box length, width, and height. They are ideal for high-volume production lines running fixed carton batch sizes. Random Case Sealers feature pneumatic sensors and motorized actuators that automatically adjust to varying box dimensions on the fly, making them essential for e-commerce and multi-SKU fulfillment centers.
Q2 Can your carton sealers apply Water-Activated Gummed Paper Tape?
Yes. While our standard series utilizes pressure-sensitive BOPP or PVC adhesive tapes, we manufacture specialized Electric Wet Water Kraft Paper Tape Sealing Machines equipped with built-in water reservoirs, thermal heaters, and precision cutter blades specifically designed for gummed kraft paper tape applications.
Q3 How do I select between Top & Bottom Drive vs. Side Belt Drive sealers?
Selection depends on your box height-to-width ratio and package weight. Use Top & Bottom Drives for heavy boxes, tall narrow boxes, or unstable cartons that require vertical support. Use Side Belt Drives for flat, short, or lightweight cartons to prevent top-flap crushing and ensure uniform side pressure.
Q4 What OEM/ODM customization options are available for industrial clients?
We offer comprehensive customization including full stainless steel (SUS304) construction for damp or food-grade environments, integrated inkjet coding brackets, safety light curtains, extended conveyor tables, custom electrical cabinet wiring (Siemens/Schneider PLC), dynamic motor voltages, and custom brand paint colors.
Q5 What is the maximum sealing speed attainable on your automatic lines?
Our standard semi-automatic models process 18 to 25 cartons per minute. High-speed fully automatic flap-folding case sealers achieve up to 35–45 cartons per minute depending on carton length and tape width requirements.
Q6 How are spare parts, blade replacements, and wear items handled internationally?
All machines ship with a fast-wear spare parts kit (including spare blades, drive belts, springs, and squeegee rollers). Additional replacement parts are stocked across our regional service centers and can be dispatched via DHL/FedEx express within 24 hours.
Q7 What maintenance routines are required to ensure 24/7 continuous uptime?
Routine maintenance is simple and minimal: inspect and lubricate drive chains monthly, clean adhesive residue off cutter blades weekly, check belt tension, and ensure pneumatic air filters remain dry and clean. Detailed visual maintenance manuals are supplied with all machines.
Q8 Are your machines certified for international markets (CE, UL, ISO)?
Yes. All standard and OEM machinery manufactured in our facility carries full CE compliance certifications and conforms to ISO 9001:2015 quality management standards. UL-certified electrical components are available upon request for North American deployments.
Ready to Automate Your End-of-Line Packaging Operation?
Contact our senior engineering team today to request a comprehensive product catalog, customized line layout proposals, or factory-direct price quotations.
