Engineering Whitepaper: Viscous Fluid Dynamics in Custom Sauce Packaging
Packaging viscous food pastes and liquid condiments presents complex mechanical and rheological challenges. Unlike free-flowing liquids like water or thin spirits, sauces exhibit non-Newtonian fluid behaviors—ranging from shear-thinning (thixotropic) characteristics seen in ketchup and mayonnaise, to high-yield-stress particulate suspensions observed in chili oil, hot sauce with seed inclusions, and fruit jams.
As a premier Custom OEM Sauce Filling Packaging Machine Supplier & Exporters, SIA Concordia designs modular dosing architectures specifically tailored to master these hydrodynamic properties. Achieving high-speed line speeds without compromising filling volume accuracy or seal cleanliness requires precision engineering across three critical vectors:
For shear-sensitive products containing intact food particulates (such as tomato diced salsas or chili seeds), traditional piston pumps can crush suspended solids. Our custom OEM machines integrate sanitary tri-lobe and bi-wing rotary pumps driven by high-torque Panasonic servo motors. This preserves product structural integrity while maintaining volumetric accuracy within ±0.5%.
Liquid contamination on film sealing margins is the primary cause of pouch channel leaks and vacuum decay in food safety audits. SIA Concordia’s proprietary pneumatic blow-back and suction-cut nozzles instantly reverse micro-pressure at the filling tip upon dose completion, eliminating trailing drops and ensuring clean heat-seals.
Viscosity fluctuates dramatically with ambient factory temperatures. Our sauce packaging machinery incorporates double-jacketed electric or steam heated hoppers with continuous anchor-blade agitation systems, ensuring uniform thermal delivery (up to 95°C for hot-fill processes) and preventing fat separation in oil-heavy sauces.
Technical Matrix: Selecting the Optimal Dosing Mechanism for Sauce Lines
Choosing between pneumatic piston fillers, rotary lobe pumps, and peristaltic metering systems dictates long-term operational efficiency (OEE), maintenance cycles, and sanitation speed. Below is our engineering selection matrix for international procurement managers:
| Dosing Mechanism | Ideal Viscosity Range (cP) | Particulate Handling | Filling Accuracy | CIP Sanitation Speed | Primary Industrial Applications |
|---|---|---|---|---|---|
| Volumetric Piston Pump | 1,000 – 50,000 cP | Small particles (<3mm) | ±0.5% | Moderate (Manual / Semi-CIP) | Ketchup, Honey, Sachet Soy Sauce, Mustard |

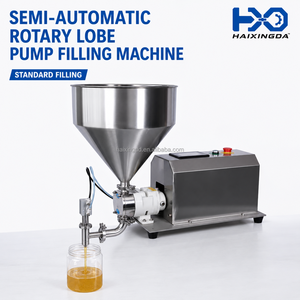

| Servo Rotary Lobe Pump | 5,000 – 500,000 cP | Large particulates (<15mm) | ±0.3% | Fast (Full Automated CIP/SIP) | Chili Paste with Seeds, Pasta Sauce, Salsa |
| Peristaltic Metering Pump | 1 – 5,000 cP | Homogenous fluids only | ±1.0% | Ultra-Fast (Disposable Tubing) | Single-Serve Salad Dressings, Vinegar Solutions |
| Gravity Flow Electronic Valve | 1 – 1,000 cP | No solids allowed | ±0.8% | Standard Flush | Thin Soy Sauces, Dipping Oils, Watery Syrups |
Global Trends Shaping Sauce Packaging Procurement (2025–2030)
As consumer preferences shift toward eco-conscious packaging formats and quick-service restaurant (QSR) chains expand globally, B2B buyers must evaluate sauce packaging machinery against next-generation industry benchmarks:
Strict global plastic directives are forcing a migration from traditional PET/ALU/PE laminated foils to recyclable Mono-PE and Mono-PP structures. These sustainable films have narrower thermal sealing windows. SIA Concordia’s advanced custom OEM packaging machines feature continuous digitally controlled servo sealing jaws with micro-second temperature response to prevent film burn-through while guaranteeing airtight seals.
Cross-contamination and allergen control (e.g., peanut, sesame, dairy-based sauces) are paramount. Modern plants demand machinery with IP65/IP69K stainless steel washdown protection and built-in CIP spray ball channels. Our machines enable full hygienic flush-cycles without disassembling fluid pipes, reducing batch changeover downtime from 4 hours to under 30 minutes.
QSR giants demand single-serve condiment packets produced at scale. Multilane sachet lines capable of running 6 to 12 lanes simultaneously at speeds up to 1,500 sachets per minute are replacing legacy single-lane units. Integrated inline vision inspection systems automatically reject misaligned or underfilled sachets without interrupting production flow.
Why Partner with SIA Concordia? Enterprise OEM & Export Superiority
With over 20 years of dedicated manufacturing expertise, SIA Concordia stands at the forefront of industrial packaging machine technology. Our state-of-the-art 20,000+ square meter production facility houses over 500 skilled engineers, R&D specialists, and CNC precision machining centers.
We do not simply sell standard equipment; we serve as a comprehensive Custom OEM/ODM Packaging Line Manufacturer for clients in over 80 countries spanning Europe, North America, Southeast Asia, the Middle East, and Latin America.
- Full CE & ISO 9001:2015 Certification: Built strictly in compliance with EU machinery directives and FDA food contact material standards.
- Bespoke Customization: Tailored dosing ranges, hopper capacities, bag shapes (stick pack, 3-side seal, 4-side seal, pouch-in-pouch, Doypack zipper), and voltage specifications.
- Global Field Support: Dedicated multilingual technical team offering remote IoT cloud diagnostics, on-site installation, operational training, and guaranteed spare parts dispatch within 48 hours.
Our Custom OEM Engineering Workflow
From initial fluid viscosity analysis to full turn-key line commissioning, we deliver end-to-end reliability for international importers.
Frequently Asked Questions (B2B Procurement & Engineering Guide)
Direct answers to technical queries raised by global plant managers, project engineers, and machinery distributors:
